tabella sostituzione fischi SARACOM con equivalenti Kockum Sonics

AIR HORN replacement

   If replacing an air horn we need to know the following in order to replace the air horn:

       Air supply pressure:
       (Service air system 6-9 bar or starting air system 16-30 bar)

      Voltage for solenoid valve to operate horn:
       Normally 230VAC (50 or 60Hz) or 115 (50 or 60Hz) or 24VDC

       Voltage for heating element:
       Normally 230VAC (50 or 60Hz) or 115 (50 or 60Hz) or 24VDC

       Voltage for emergency solenoid if connected:
       (Normally not connected)

       LOA (length overall) of ship:
       Just to double check that the correct type of horns is picked.

SARACOM Whistle:

LOA of Ship

TYFON replacement

WA-11/143

>200m

MKT 150/110

WA-21/138

<200m

AT 150/200

WA-26/138

<200m

AT 150/330

WA-31/130

20-75m

MKT 75/260 Or MKT 75/440

WA-4100

<20m

MKT 75/260Or MKT 75/440

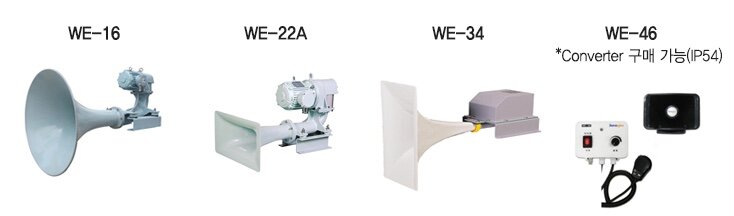

ELECTRICAL HORN replacement

       If replacing an electrical horn we need to know the following in order to
       replace the air horn.

       Supply voltage for ships with LOA from 75m and upwards
       660-690VAC 3phase (50 or 60HZ) or
       440VAC 3phase (50 or 60HZ) or
       360VAC 3phase (50 or 60HZ)

   Supply voltage for ships with LOA <75m:
       24VDC

       Control voltage for big whistle:
       230VAC or 115VAC 1 phase( 50 or 60Hz)

       LOA (length overall) of ship: Just to double check that the correct type of
       horns is picked.

SARACOM Whistle:

LOA of Ship

TYFON replacement

WE-12/143

>200m

MTX 150/130

WA-22/138

75- 200m

MT150/130

WA-22A/138

75- 200m

MT150/130

WE-34/130

20-75m

ETD 100/350
